AC contactor for switchgear

Theory: Electromagnetic Relay
Usage: Household Appliances Relay, Switchgear
Phase: 3
Electricity Type: Ac
Number of Pole: 1
Load: Medium Power Relay

Descrição

Descrição do produto

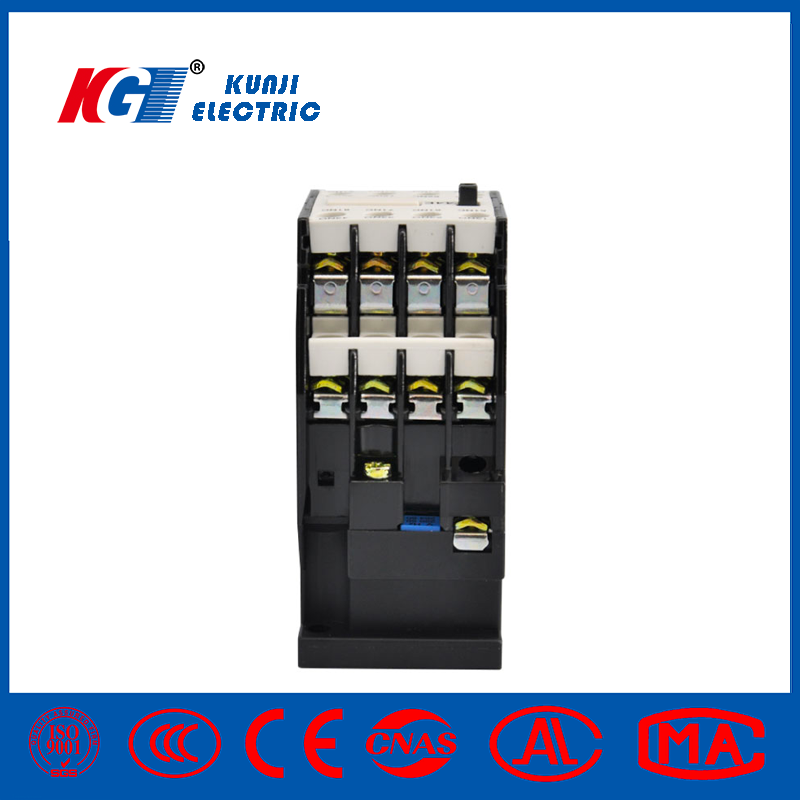

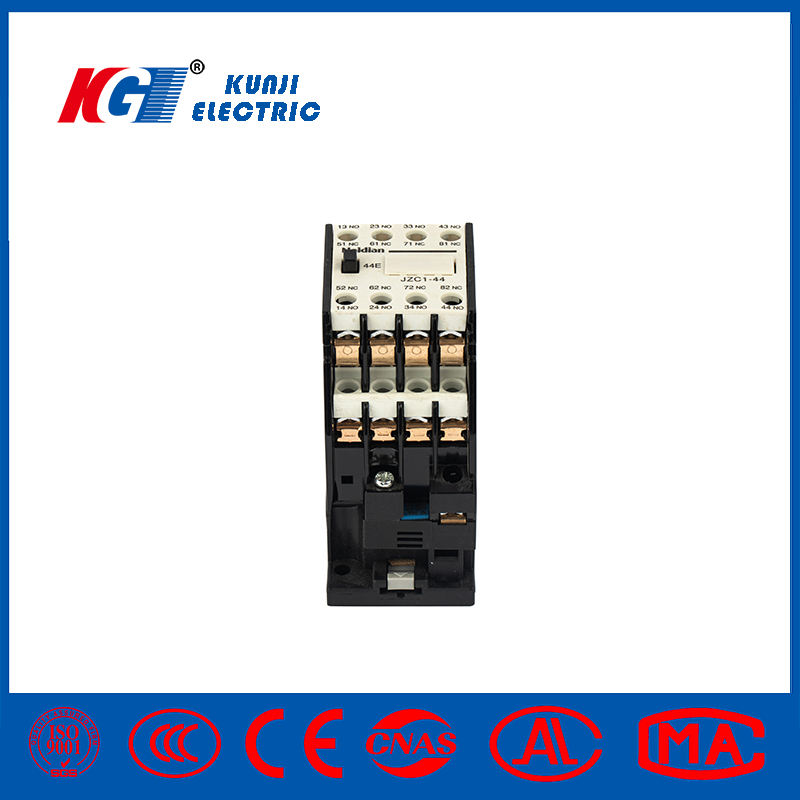

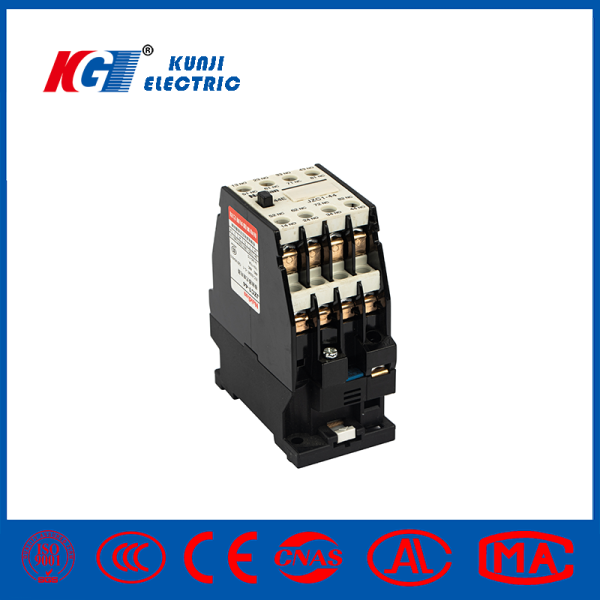

JZC1 Series Contact-type Relay(auxiliary contact)applies to the control circuit of 50/60HZ , In the control circuit with rated voltage up to 380V or RATED DC voltage up to 220V, used to control various magnet coils and used for the amplification and transmission of electrical signals, it is necessary to realize automatic and remote control
Fewer low voltage electrical components.
Compliance with standards: GB/T 14048.5, IEC 6094

Parâmetros técnicos

CONDIÇÕES DE TRABALHO

1. Ambient air temperature: -5ºC~+40ºC, the average does not exceed +35ºC within 24 hours.
2. Altitude: not more than 2000m.
3. Atmospheric conditions: the maximum temperature is +40ºC, the relative humidity is not more than 50%; at lower temperatures can allow a higher relative humidity, for example, +20ºC up to 90%, special measures should be taken for condensation produced occasionally due to temperature changes.
4. Pollution level: 3.
5. Installation category: III.
6. Installation conditions: The inclination of the installation surface and the vertical plane is not more than ±5°.
7. Shock Vibration: The product should be installed and used in the place without significant shaking, shock and vibration.

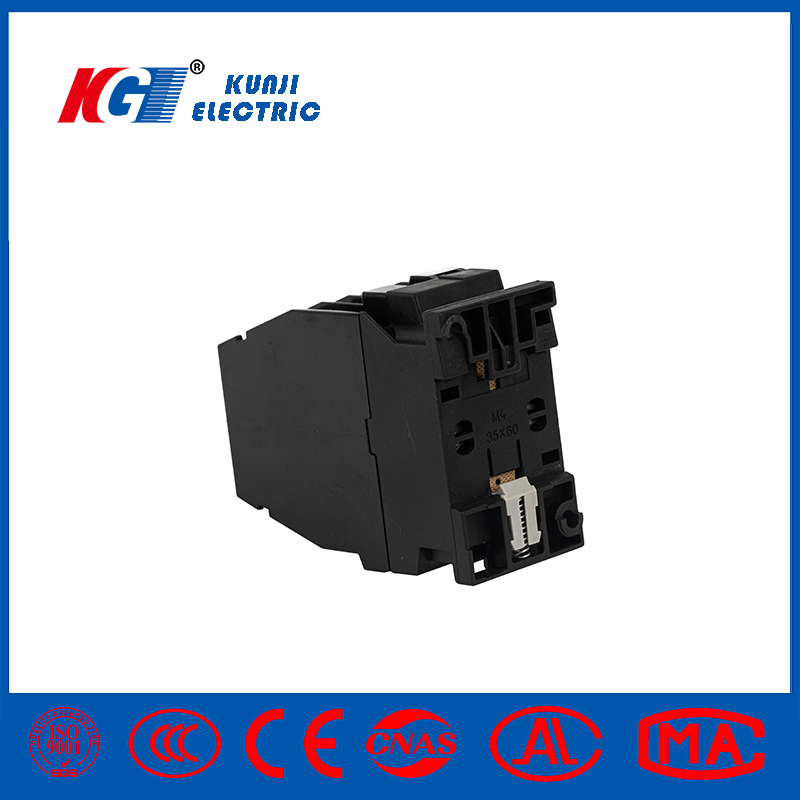

8. Installation method: Except for screw installation, but also 35mm standard card rail installation. AC operation 40-95 can installed in 35mm or 75mm card rail.

PORMENORES DE PRODUÇÃO
