Product Description

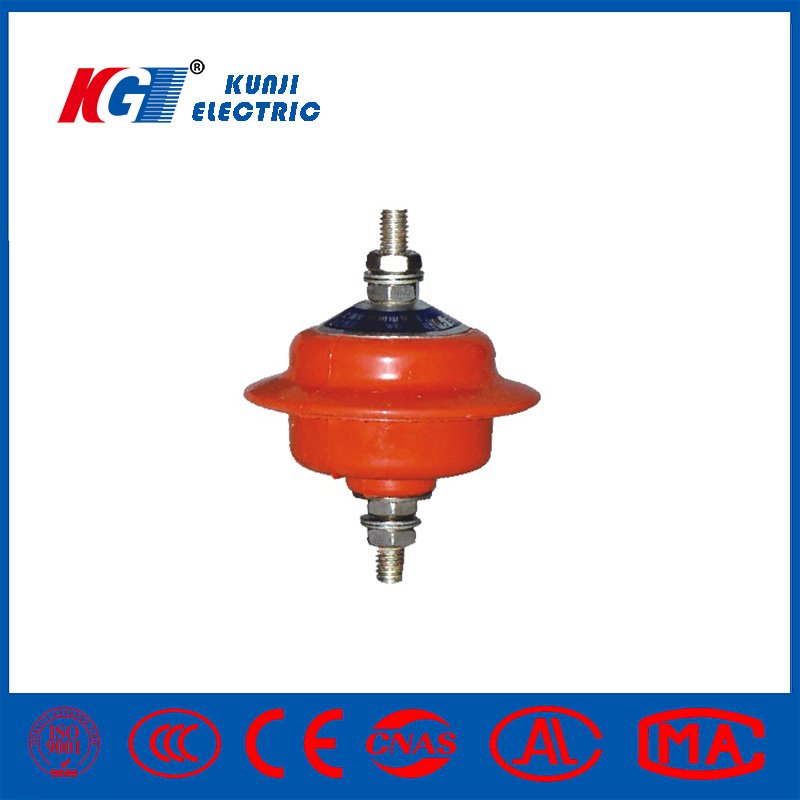

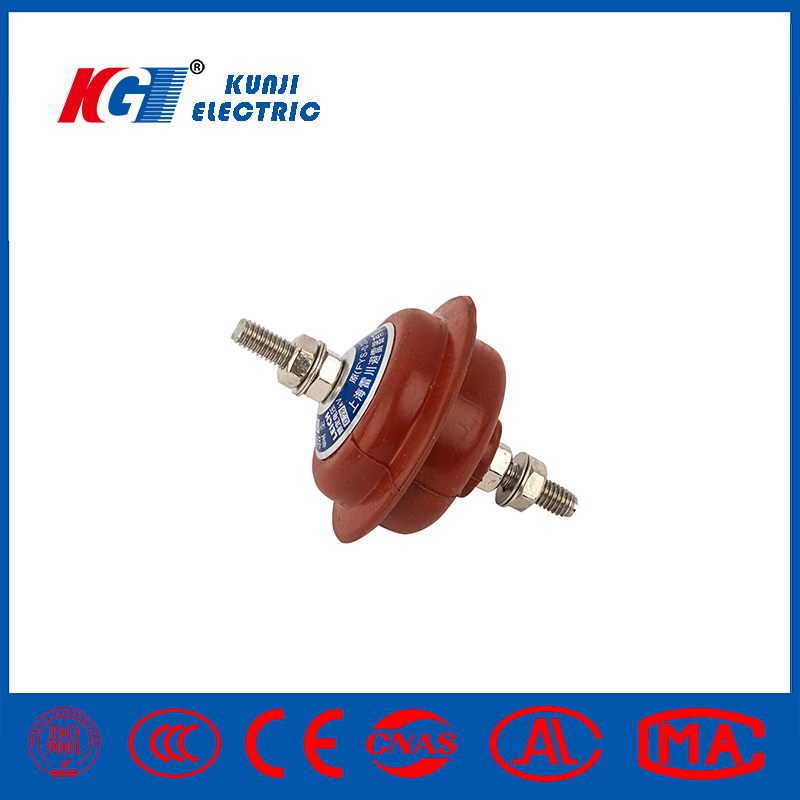

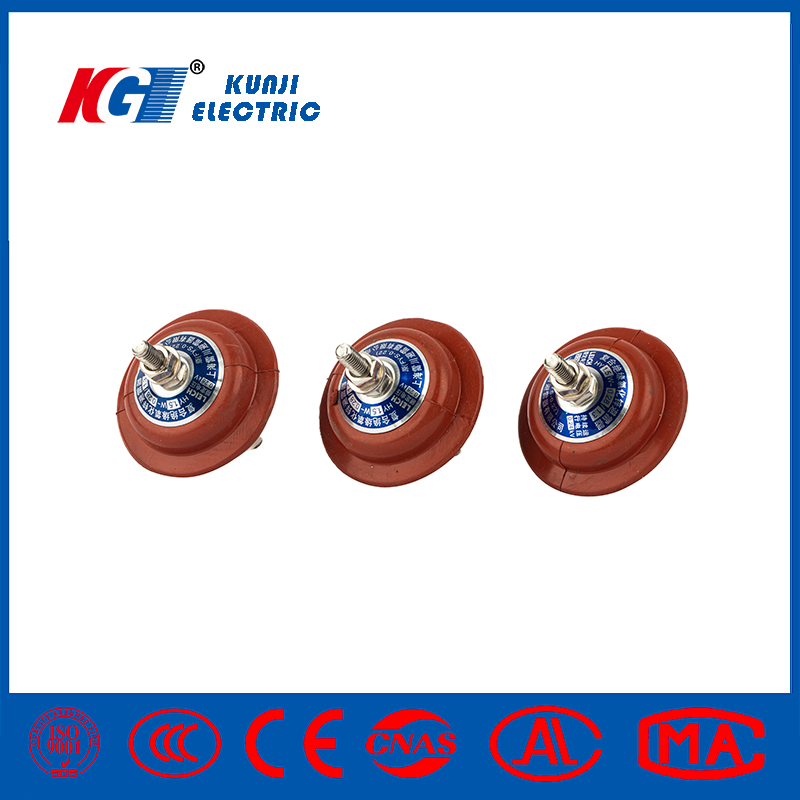

Low Voltage Surge Lightning Arrester Parameters
| el | System Rated voltage | Arrester rated voltage | MCOV | DC U1mA | 8/20us ligntninh impulse residual voltage | 2ms rectangular wave allowed current capacity | 4,10us high current impulse withstand |
| kV(r.m.s) | ≮kV | ≯kV | |||||
| HY5WS-3.8/15 | 3 | 3.8 | 2 | 7.5 | 15 | 75A | 40kA |
| HY5WS-5/15 | 5 | 4 | 8 | 15 | 90A | 65kA | |
| HY5WS-7.6/30 | 6 | 7.6 | 4 | 15 | 30 | 75A | 40kA |
| HY5WS-10/30 | 10 | 8 | 15 | 30 | 90A | 65kA | |
| HY5WS-12.7/50 | 10 | 12.7 | 6.6 | 25 | 50 | 75A | 40kA |
| HY5WS-17/50 | 17 | 13.6 | 25 | 50 | 90A | 65kA | |
WORKING CONDITIONSa) Ambient air temperature within the range of -55ºC to +50ºC.
b) Altitude not exceeding 2000m.
c) Frequency of the A.C. Power supply not less than 48Hz and not exceeding 62Hz.
d) Power frequency voltage applied continuously between the terminals of the arrester not exceeding its continuous operating voltage.
e) Maximum wind speed not exceeding 35m/s.
f) Earthquake intensity not exceeding 7 degrees.

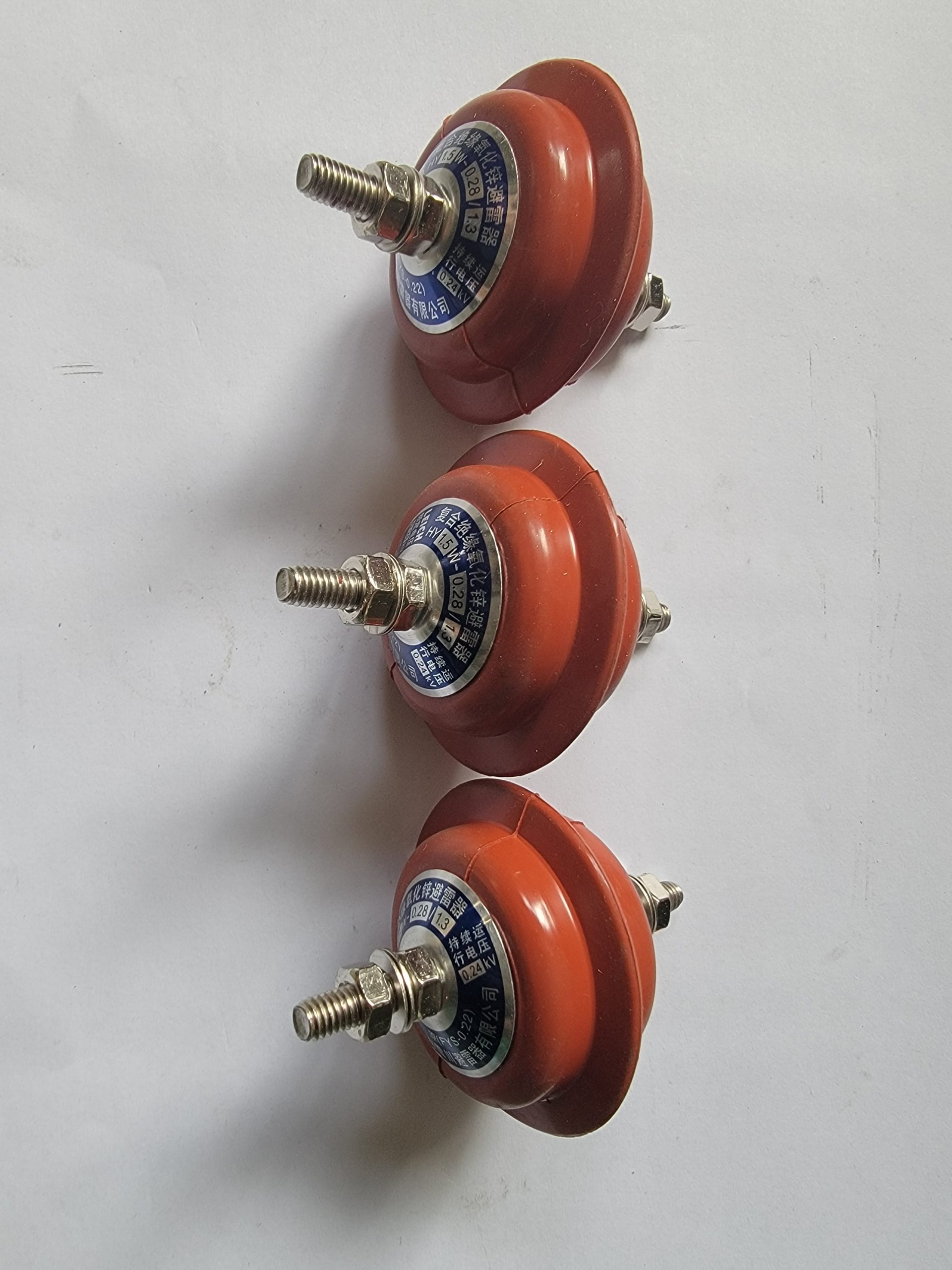

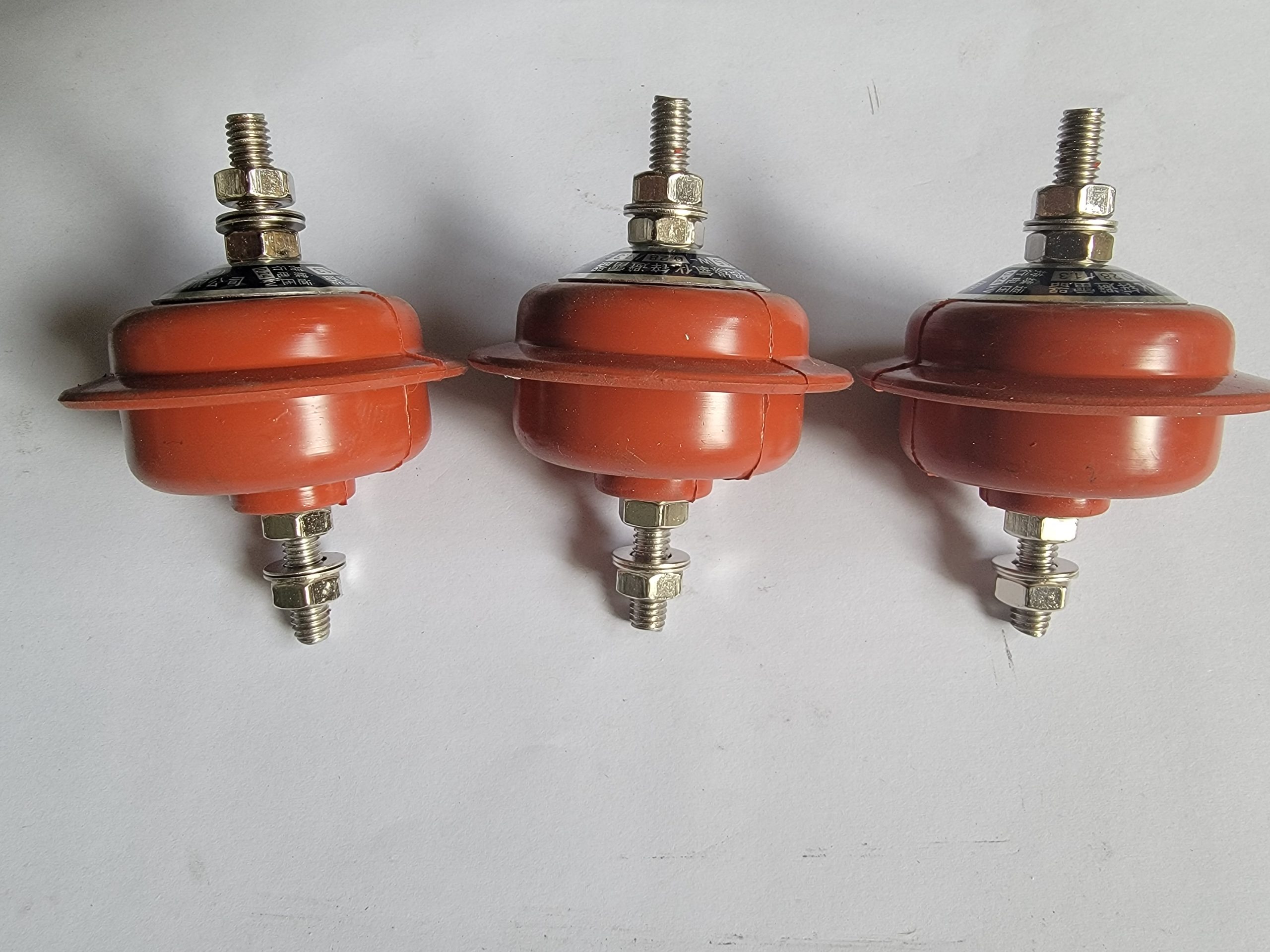

PRODUCTION DETAILS
