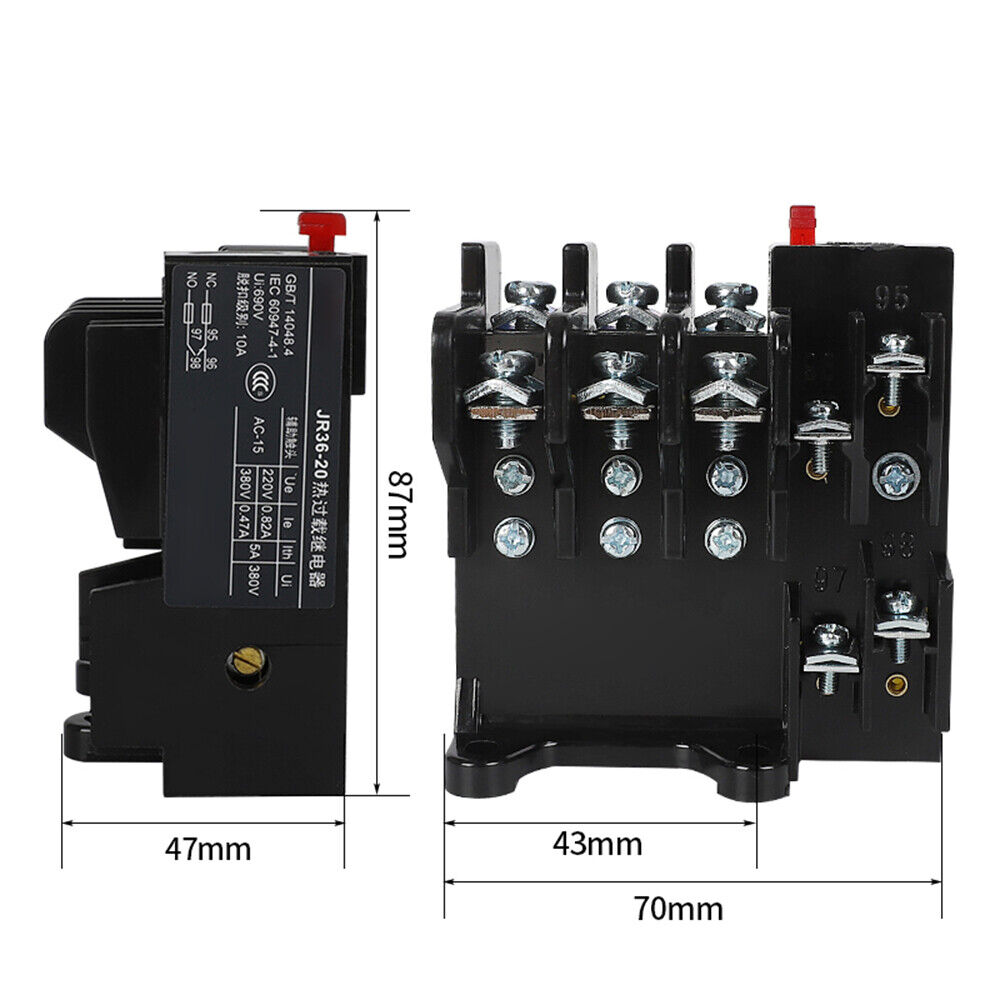

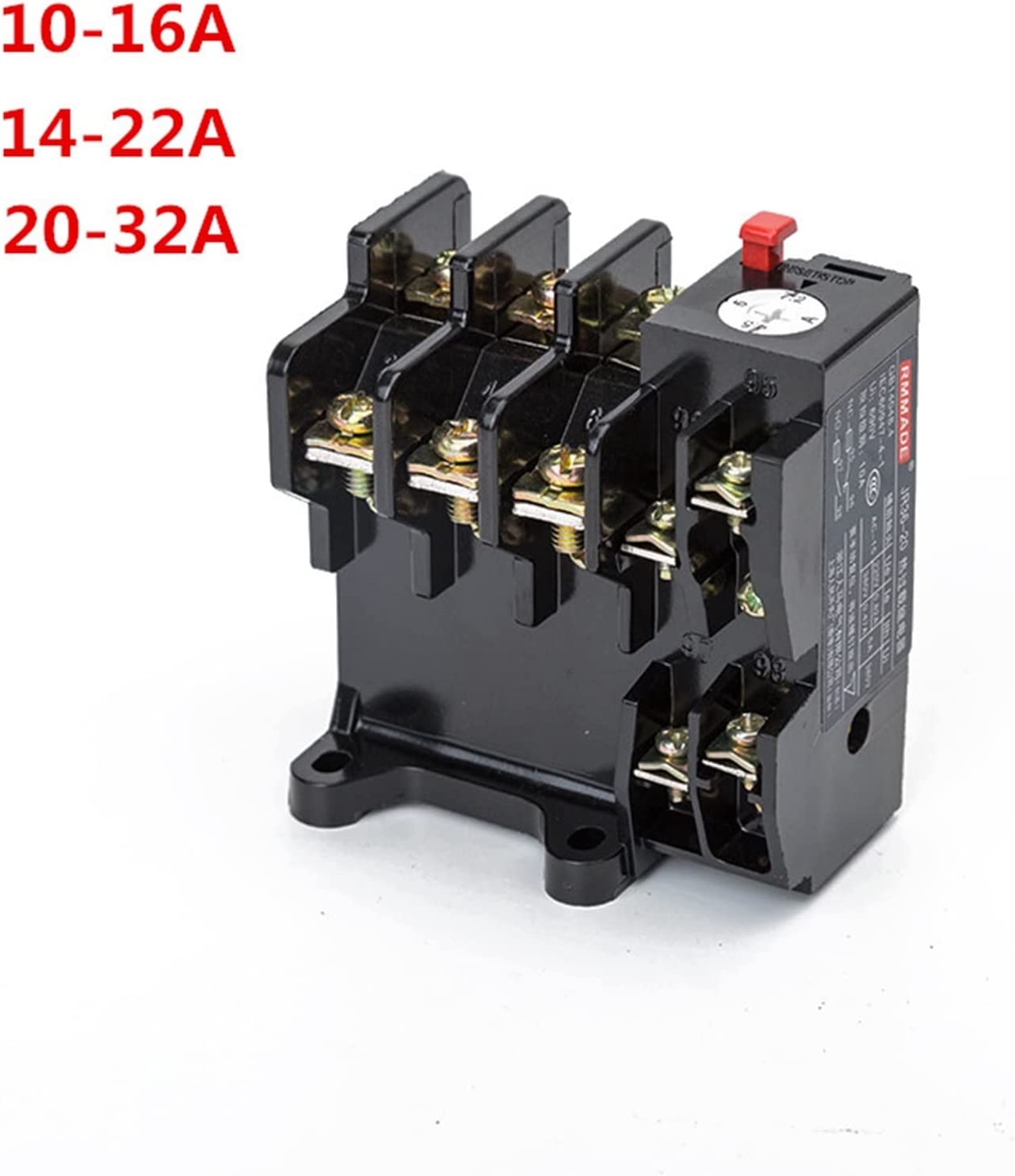

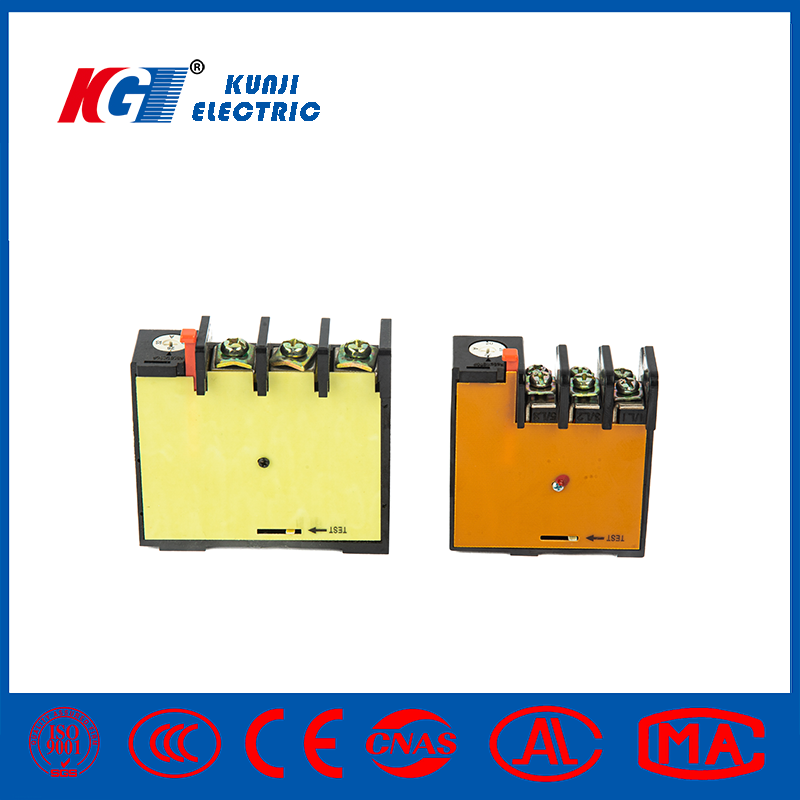

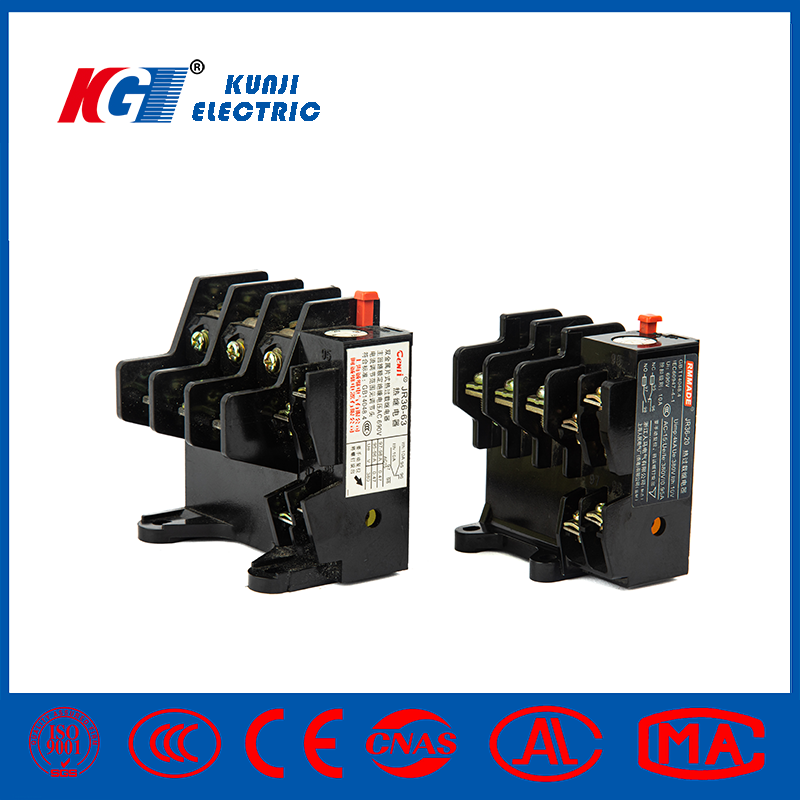

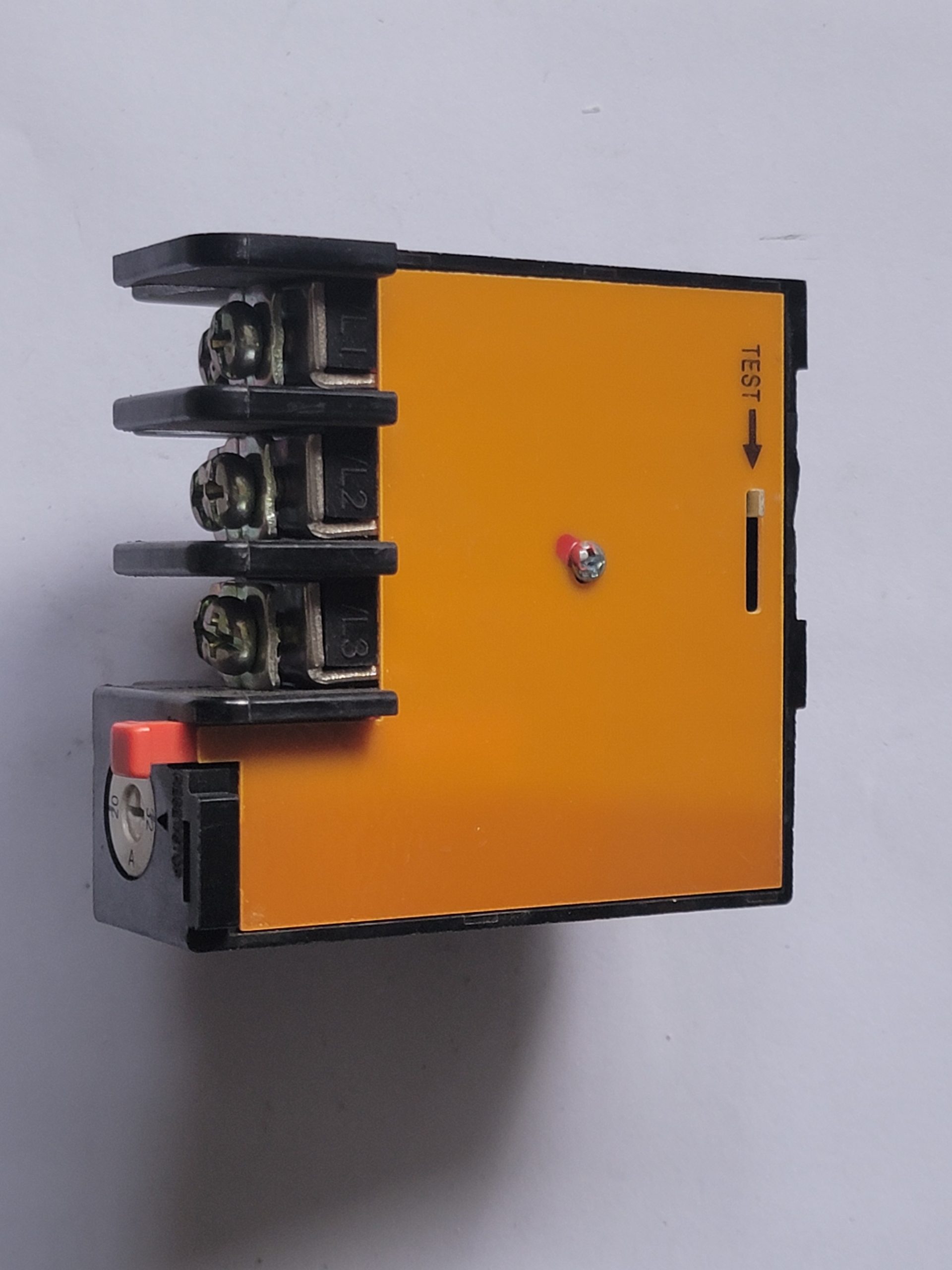

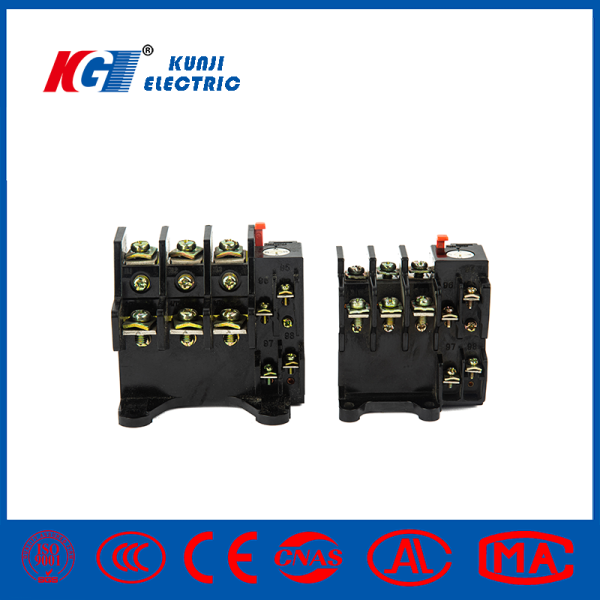

JR36-32  Thermal Overload Relay
Name: Thermal overload relay
Model: JR36-32
Rated voltage: AC380V
Rated current range: 10-16A 14-22A 20-32A
Power consumption: <;5W
Heating current: 5A
Contact form: NO
JR-36 scope of application
JR36 series thermal overload relay is suitable for AC 50Hz/60Hz, voltage to 690V, current to 0.25-160A long-term operation or intermittent long-term AC motor overload and phase failure protection. The thermal relay has phase failure protection, temperature compensation, automatic and manual reset, and reliable operation.
This product complies with: GB14048.4, IEC60947-4-1 and other standards.
Thermal relays are only installed separately. This product and CJT1 contactor constitute the QC36 type electromagnetic starter.

Structural features
In addition to overload protection and phase loss protection, this relay also has the following structural features:
1. Temperature compensation structure;
2. Action flexibility check;
3. Convertible manual reset or automatic reset device;
4. Manual A device that disconnects normally closed contacts.

ARBEIDSOMSTANDIGHEDEN
1. Altitude: no more than 2000m;
2. Ambient temperature: -50°C~+40°C, the average value of 24h does not exceed 35°C;
3. Relative humidity: no more than 50% when the highest temperature is +40°C , The maximum relative humidity is 90% (20ºC). Special measures must be taken for condensation on the product due to temperature changes;
4. Pollution level: 3;
5. The installation tilt angle between the installation surface and the vertical surface should not exceed ±5°, and there should be no significant vibration and impact at the installation site ;
6, the main circuit using the basic categories AC-3, AC-15 auxiliary circuit or DC-13, the operating frequ
