Description du produit
SBW-F

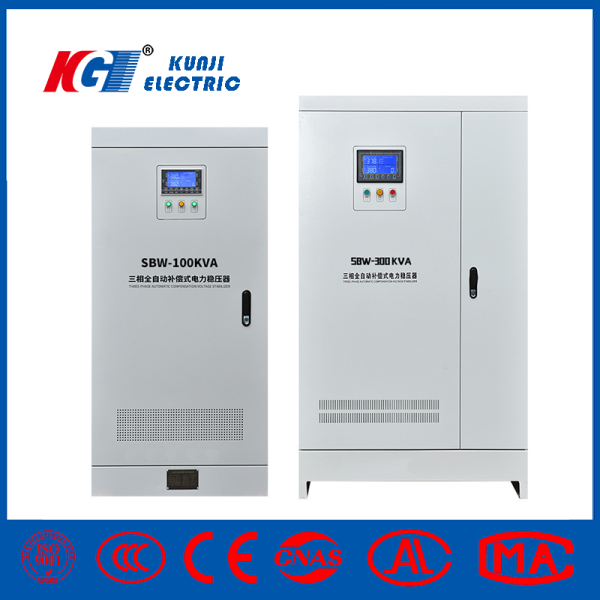

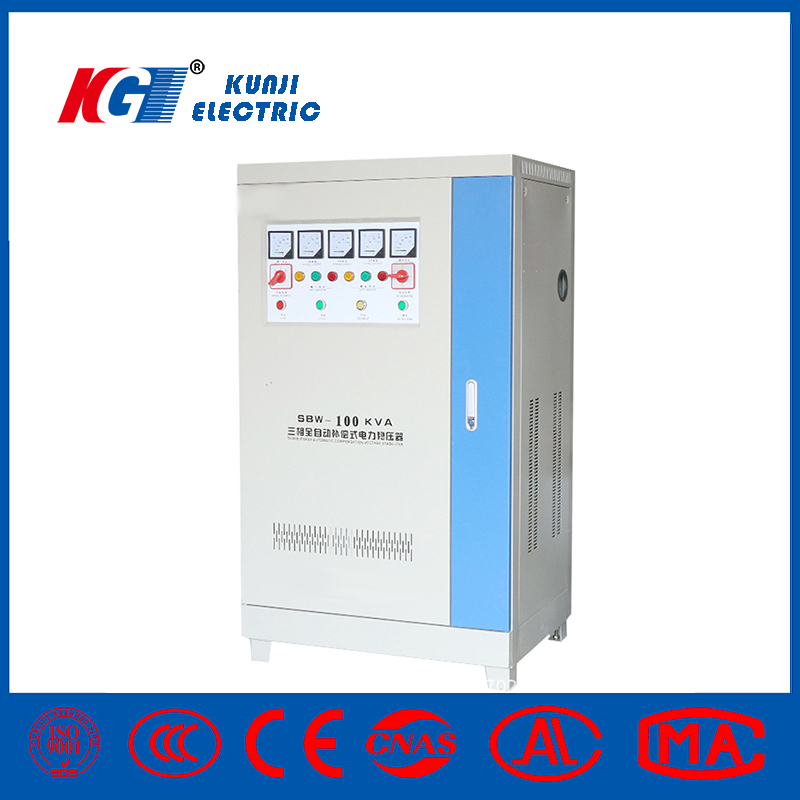

SBW-F series three-phase adjustable automatic compensation type power regulator, SBW series products to improve the voltage regulator, suitable for three-phase voltage input unbalanced power grid, when the power grid fluctuations or load current changes,
three-phase output can be automatically balanced, and maintain the advantages of stable voltage regulation.
USE SITUATION
It is widely used in posts and telecommunications, shopping malls, elevators, hospitals, schools, printing, textile, securities and other occasions that require normal voltage assurance and workshops of large and medium-sized industrial and mining enterprises, some power supply and important equipment and supporting facilities.
CARACTÉRISTIQUES TECHNIQUES
| Input voltage | Single phases :175V-265V Three phases four-line 175V-265V( phases voltage) 300V-456V( Linevoltage) |
Output voltage | Single phases:220V; Three phases:380V; |
| Output deviance | 1-5%( Adjustable) | Frequency | 50Hz/60Hz |
| Efficiency | ≥95%( 50kvA ) (Power>50kVA) | Response time | ≤1.5S |
| Température ambiante | -10ºC~+40ºC | Insulation resistance | ≥5MΩ |
| Electrical intensity | 2000V without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min |
Overload | ,1Double rated current, one min. |
| Waveform distortion | Non-lack fidelity wareform | Protect | ,,, Overvoltage,overcurrent,feed phases |
APERÇU ET EMBALLAGE
| Modèle | Output power (kVA) | Outline (cm) | Weight(kg) |
| SBW-F-50k | 50 | 100×85×137 | 450 |
| SBW-F-100k | 100 | 115×90×200 | 540 |
| SBW-F-150k | 150 | 120×100×185 | 650 |
| SBW-F-180k | 180 | 120×100×185 | 750 |
| SBW-F-225k | 225 | 125×100×195 | 860 |
| SBW-F-250k | 250 | 125×100×195 | 875 |
| SBW-F-320k | 320 | 135×100×195 | 990 |
| SBW-F-400k | 400 | 150×85×200 | 1430 |
| SBW-F-500k | 500 | 150×85×200 | 1920 |
| SBW-F-600k | 600 | 150×85×200 | 2830 |
