Rated 25A 500V low breaking fast acting / fast blow ceramic cartridge fuse
End caps constructed of high conductivity nickel-plated brass
10x38mm (3/8″ x 1-1/2″) overall dimensions
UL/CSA 248-14 compliant design ensures low breaking capacity
Sold as a set of two (2) fuses
Specification:

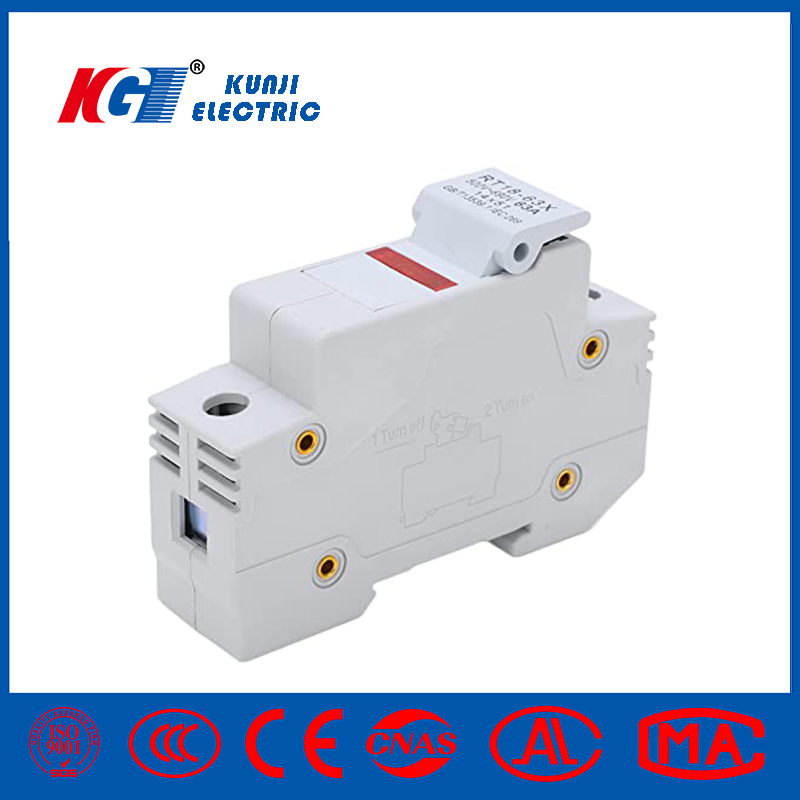

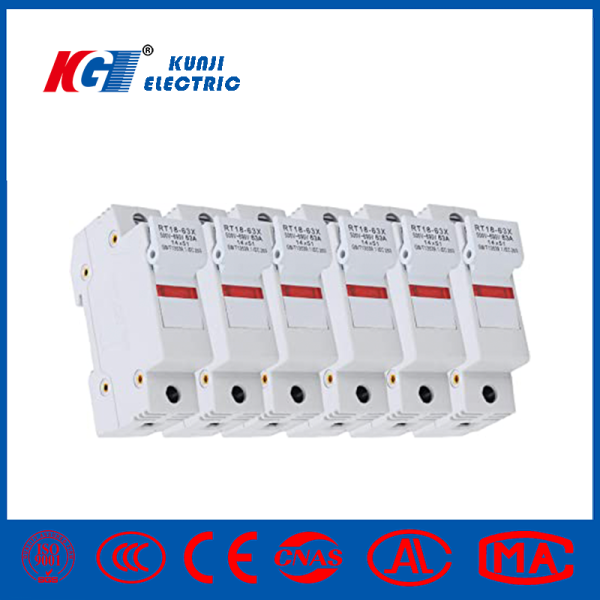

Item Type: Fuse Holder Base
Material: ABS+Copper
Model: RT18-63X
Purpose: Circuit Fault Protection
Rated Current: 63A
Rated Voltage: 500-690V

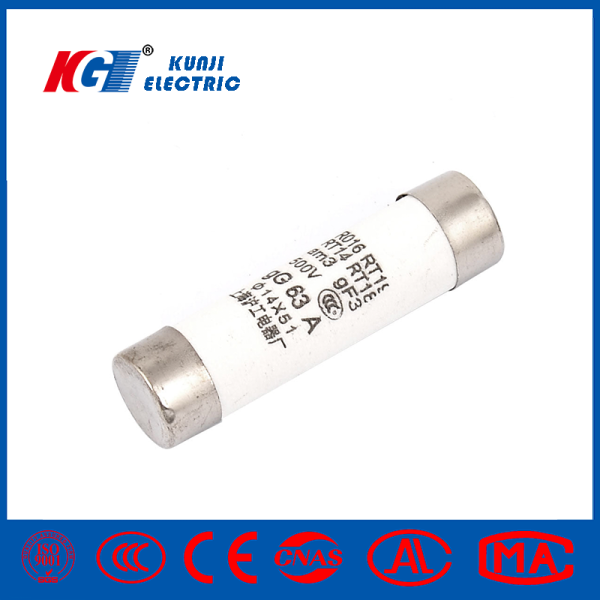

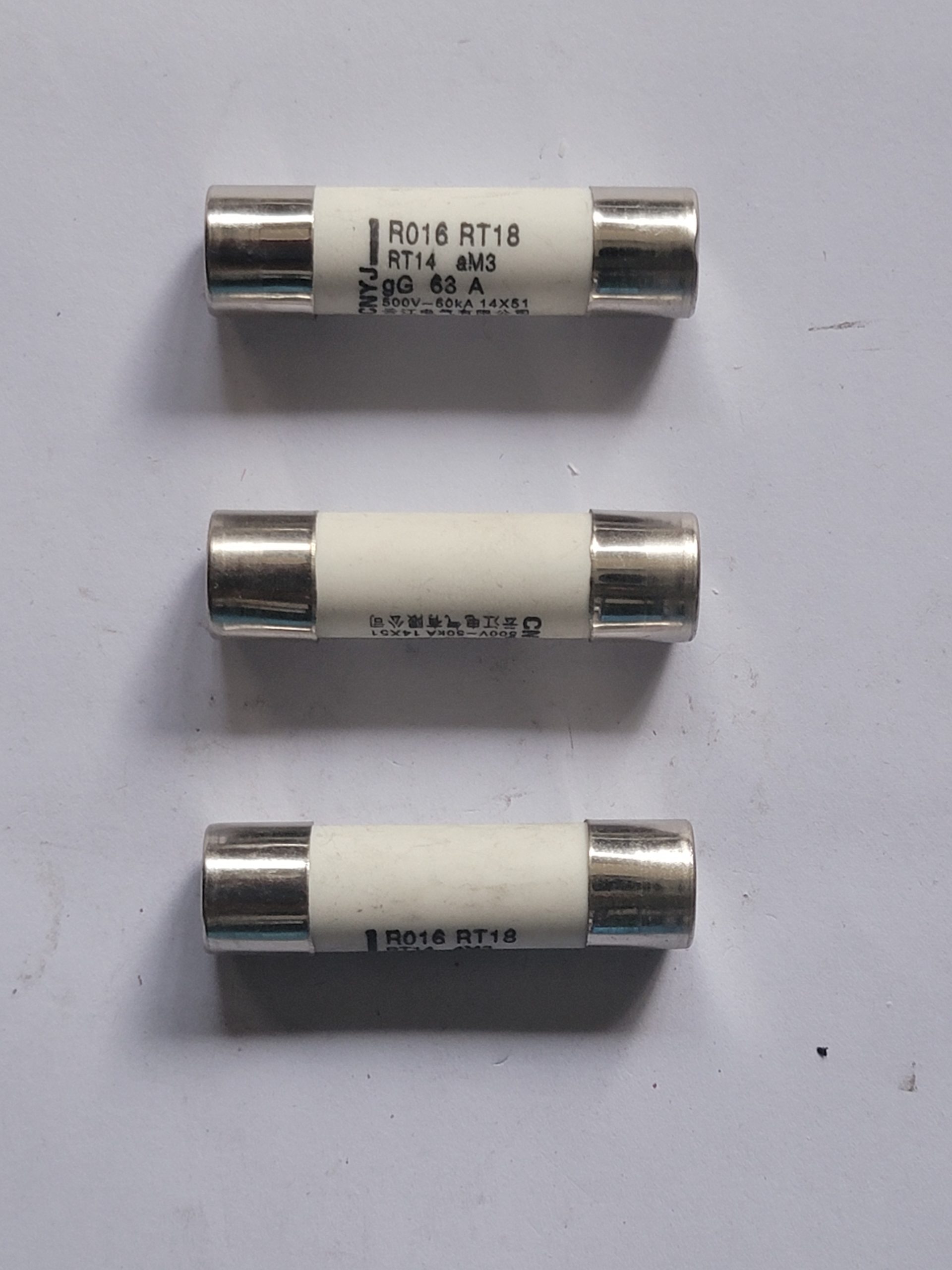

Fuse Type: RO16
Applicable Fuse Size: Approx. 14x51mm / 0.6×2.0in
Work Instructions: With Light
Installation Method: Rail installation, matching RO16 fuse core or 14x51mm specifications fuse core
Paramètres techniques
LES CONDITIONS DE TRAVAIL
no more than 2,000 meters above sea level is required,
Normal operating temperature range is -5 ~ 40ºC, limit range is -40 ~ 70ºC;
At the same tielative humidity should be 30% ~ 90% at room temperature.
Special considerations may be required in the design and use of surge protectors placed under abnormal service conditions, which should be paid attention to.
